| Item | Specification |
| Size | 11.6incjh |
| Display mode | TFT Transmissive Normal Black |
| Part NO. | RT116003A0 |
| Resolution | 440*1920 |
| Outline size | 64.98*266.39*4.6±0.2 mm |
| Active area | 57.948(H) *252.864 (V) mm |
| View direction | ALL.O'CLOCK |
| Piexl pitch | 440*1920 |
| Interface | MIPI 4Lanes |
| Backlight | 16LEDS |
| Surface luminance | 500cd/m2 |
| Logic voltage | 2.8V-3.3V |
| Operating temperature | -20 ～ +70 ℃ |
| Storage temperature | -30 ～ +80 ℃ |

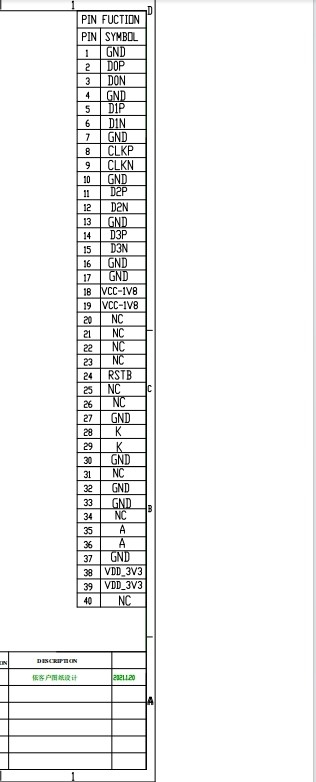

| 1 | GND | Ground |
| 2 | DSI-D0P | DSI Data differential signa input pins. (Data lane0) |
| 3 | DSI-D0N | DSI Daa differential signal input pins. (Data lane O) |
| 4 | GND | Ground |
| 5 | DSI-DIP | DSI Data differential signal input pins. (Data lane 1) |
| 6 | DSI-DIN | DSI Data differential signal input pins. (Data lane 1) |
| 7 | GND | Ground |
| 8 | DSI-CLK P | DSI CLOCK differential signal input pins |
| 9 | DSI-CLKN | DSI CLOCK differential signal input pins |
| 10 | GND | Ground |
| 11 | DSI-D2P | DSI Data differentialsignal input pins. (Data lane 2) |
| 12 | DSI-D2N | DSI Data differential signal input pins. (Data lane 2) |
| 13 | GND | Ground |
| 14 | DSI-D3P | DSI Data differential signal input pins. (Data lane 3) |
| 15 | DSI-D3N | DSI Data differential signal input pins. (Data lane 3) |
| 16-17 | GND | Ground |
| 18-19 | IOVCC (NC) | IVO Power supply (NC) |
| 20-23 | NC | NC |
| 24 | RESET | Reset Signal pin("Low"is enable) |
| 25-26 | NC | NC |
| 27 | GND | Ground |
| 28-29 | LEDK | Backlight LED Cathode |
| 30 | GND | Ground |
| 31 | NC | NC |
| 32-33 | GND | Ground |
| 34 | NC | NC |
| 35-36 | LEDA | Backlight LED Anode |
| 37 | GND | Ground |
| 38-39 | VCC | Power supply |
| 40 | NC | NC |
