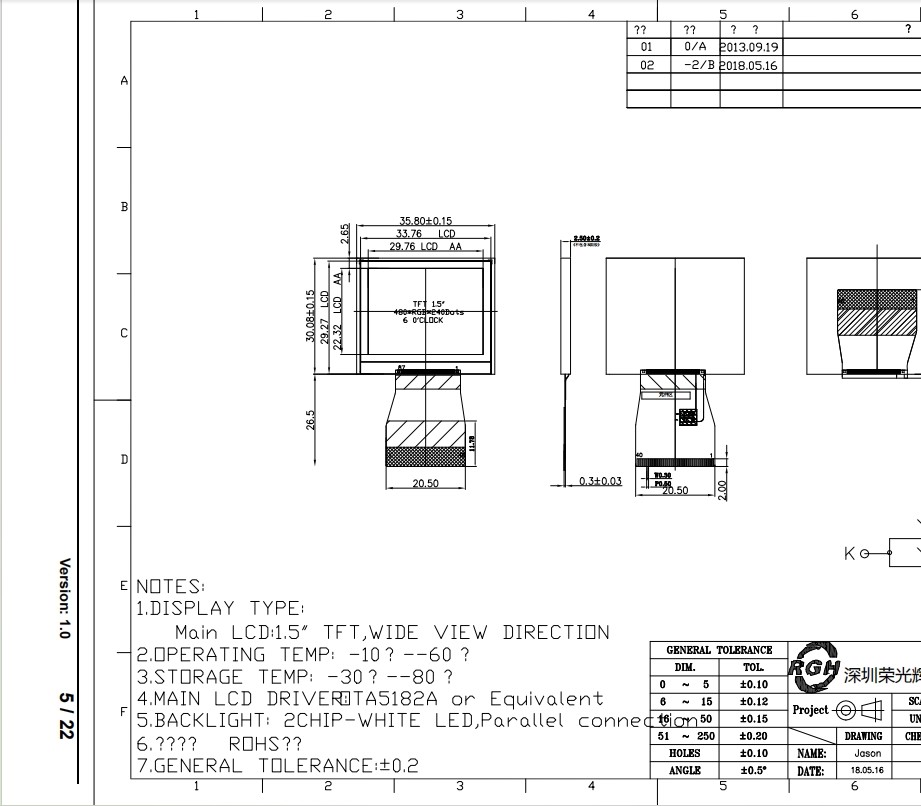

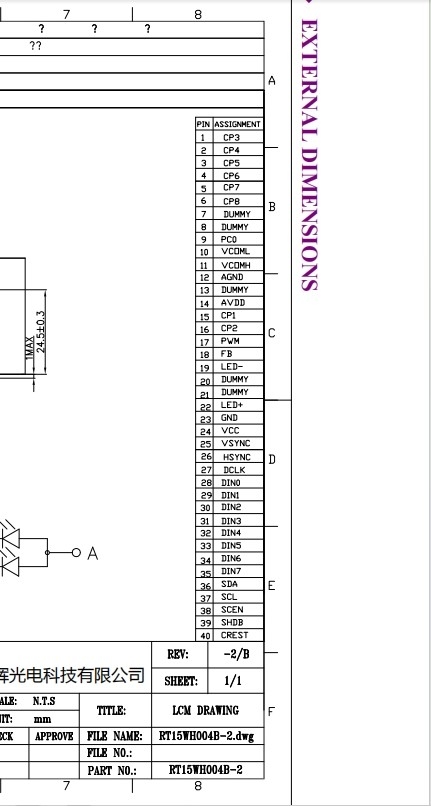

| NO. | Symbol | Level | Function |
| 1-6 | CP3-CP8 | | Pins to connect capacitors for power circuitry. |
| 7 | DUMMY | | These pins are dummy (no electrical characteristic) |
| 8 | DUMMY | | These pins are dummy (no electrical characteristic) |
| 9 | CP0 | | Pins to connect capacitors for power circuitry. |
| 10 | VCOML | | The power supply of common voltage in DC vCOM
driving |
| 11 | VCOMH | | The power supply of common voltage in DC vCOM
driving. |
| 12 | AGND | | Analog ground for source driver. |
| 13 | DUMMY | | These pins are dummy (no electrical characteristic) |
| 14 | AVDD | | Intermediate voltage for Charge Pump. |
| 15 | CP1 | | Pins to connect capacitors for power circuitry. |
| 16 | CP2 | | Pins to connect capacitors for power circuitry. |
| 17 | PWM | | PWM |
| 18 | FB | | Power pad fo analog circuit. |
| 19 | LED- | | LED,cathode. |
| 20 | DUMMY | | These pins are dummy (no electrical characteristic) |
| 21 | DUMMY | | These pins are dummy (no electrical characteristic) |
| 22 | LED+ | | LED,cathode. |
| 23 | GND | VSs | Ground. |
| 24 | VCC | | Monitoring pin of internal digital reference voltage. |
| 25 | VSYNC | H/L | Frame synchronizing signal for RGB. |
| 26 | HSYNC | H/L | Line synchronizing signal for RGB. |
| 27 | DCLK | H/L | Dot clock signal for RGB. |
| 28-35 | DIN0-7 | H/L | Data bus. |
| 36 | SDA | | Power pad fo analog circuit. |
| 37 | SCL | | Power pad fo analog circuit. |
| 38 | SCEN | | CS |
| 39 | SHDB | | STB |
| 40 | CREST | | RESET |
 |  |
