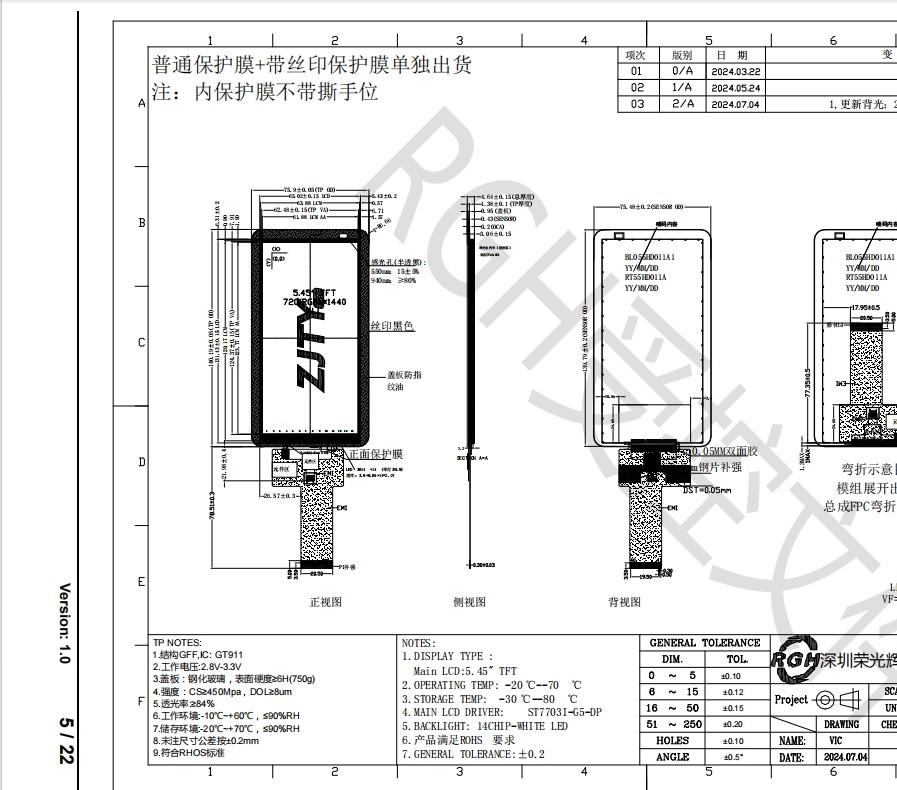

| NO. | Symbol | Level | Function |
| 1-2 | LEDA2 | | LED anode |
| 3-4 | LEDK2 | | LED cathode |
| 5-10 | NC | | NC |
| 11 | GND | | Ground |
| 12-13 | VDD | | Power setting |
| 14-15 | IOVCC | | A supply voltage tothe digital circuit.Connect to an external power
supply of 1.65~3.3V. |
| 16 | GND | | Ground |
| 17 | RESET | | Initializethe chip with a low input.Be sure to execute a power-on
reset after supplying power. |
| 18 | GND | | Ground |
| 19 | D3P | | MIPI DSI differential data pair. |
| 20 | D3N | | MIPI DSI differential data pair. |
| 21 | GND | | Ground |
| 22 | D2P | | MIPI DSI differential data pair. |
| 23 | D2N | | MIPI DSI differential data pair |
| 24 | GND | | Ground |
| 25 | CLKP | | MIPI DSI differential clock pair. |
| 26 | CLKN | | MIPI DSI differential clock pair. |
| 27 | GND | | Ground |
| 28 | D1P | | MIPIDSI differential datapair |
| 29 | D1N | | MIPIDSI differential data pair. |
| 30 | GND | | Ground |
| 31 | D0P | | MIPIDSI differential data pair. |
| 32 | D0N | | MIPI DSI differentialdata pair. |
| 33-34 | GND | | Ground |
| 35 | TP-RST | | TP-RST |
| 36 | TP-INT | | TP-INT |
| 37 | TP-SDA | | TP-SDA |
| 38 | TP-SCL | | TP-SCL |
| 39 | TP-GND | | TP-GND |
| 40 | TP-VDD | | TP-VDD |
